Edmij

Setup​

To use the Edmij integration, you must inform Edmij that you wish to receive curtailment signals on this SmartgridOne Controller. This may require a contract with Edmij.

In your communication with Edmij, provide the following ID for a physical SmartgridOne Controller:

  • [SERIAL NUMBER]_site_0
  • Example: OM1230330XSQE4D1921_site_0

For cloud controllers you must provide the ID of the site to which the Edmij curtailment signal applies.

Add 'Edmij' External Signal​

Image 1
Image 1

Edmij - Imbalance control (v2)​

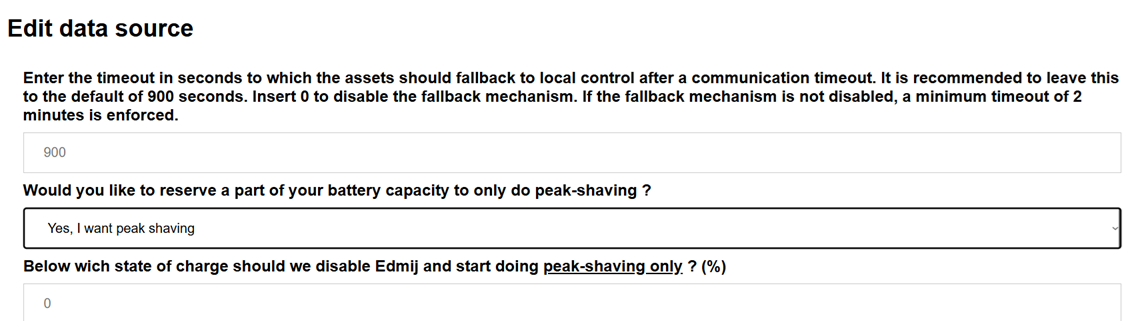

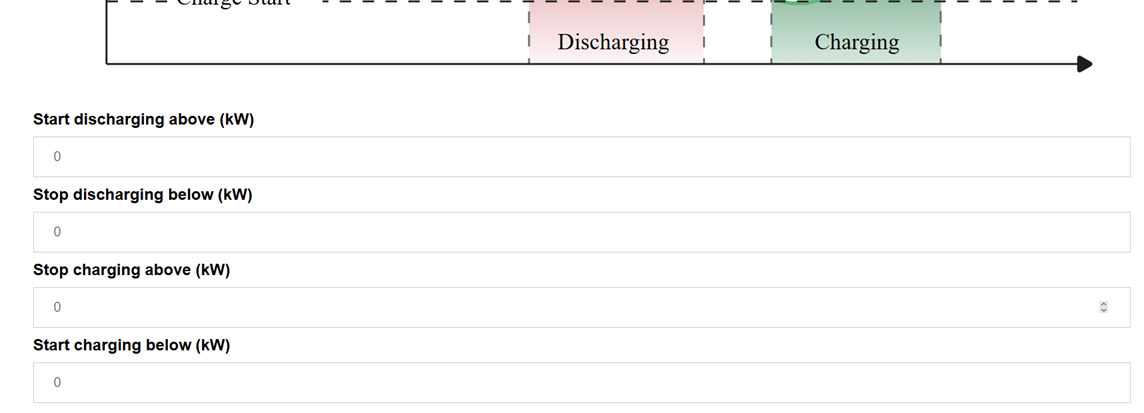

You will be asked if you want to reserve a part of your battery capacity to only do peak-shaving. If you choose "Yes, I want peak shaving" new fields will appear and you will need to fill them.

info

You need to be careful when choosing the values, because below the specified state of charge all of Edmij signals will be ignored (due to peak shaving only).

In the next page, you have the option to include/exclude devices for remote control. Ensure to mark all checkboxes of devices you'd like to include. You must also go through the steps of the "External data sources" wizard on the SmartgridOne Controller to indicate to which inverters the curtailment signal applies.
