Dispositivi Supportati

Device TypeVariantsModbus TCP (Ethernet)RS485Curtailment
SG04LP3-EUSUN-5/6/8/10/12K
SG01LP1-EUSUN-12/14/16K

Cablaggio

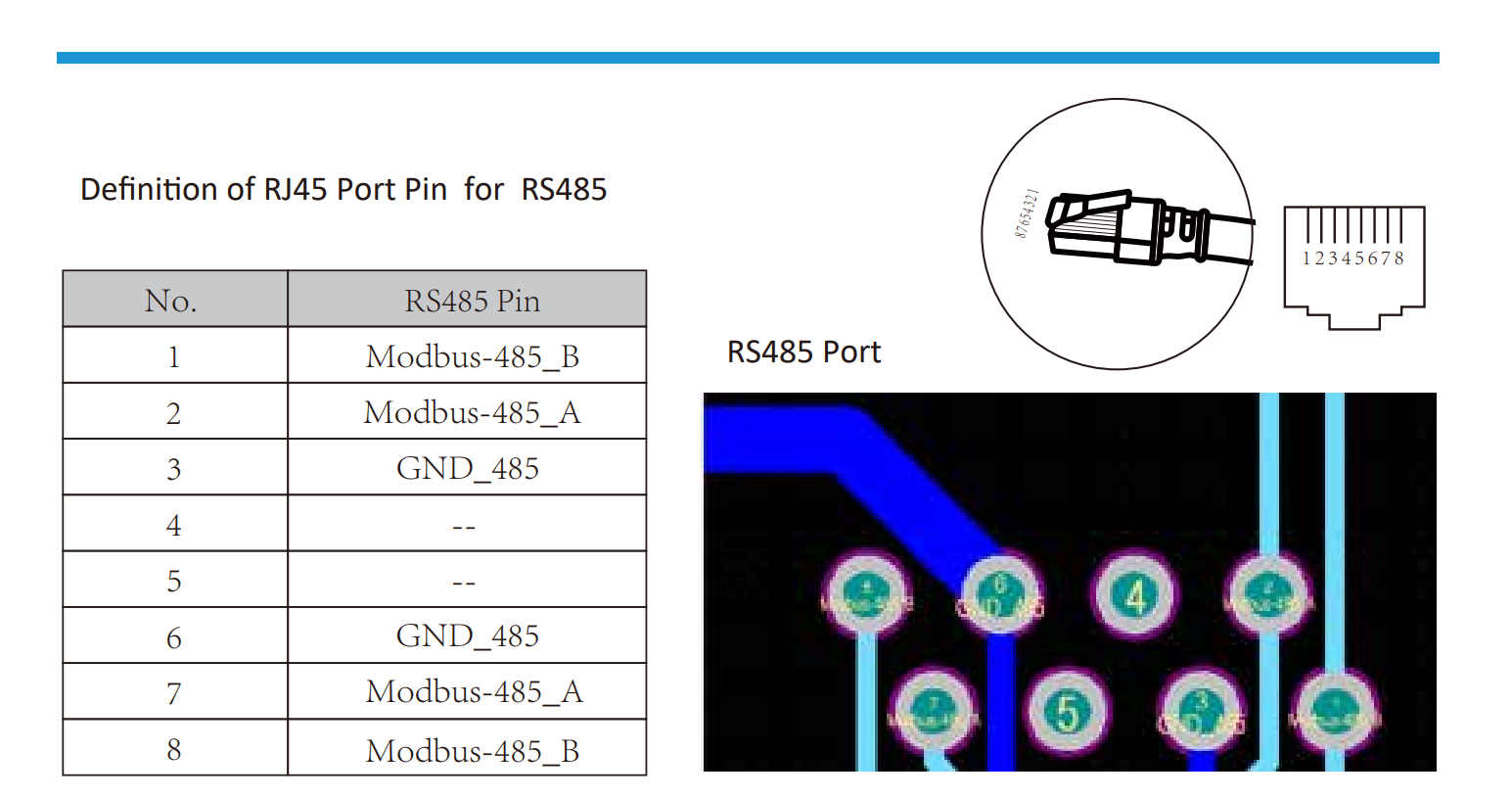

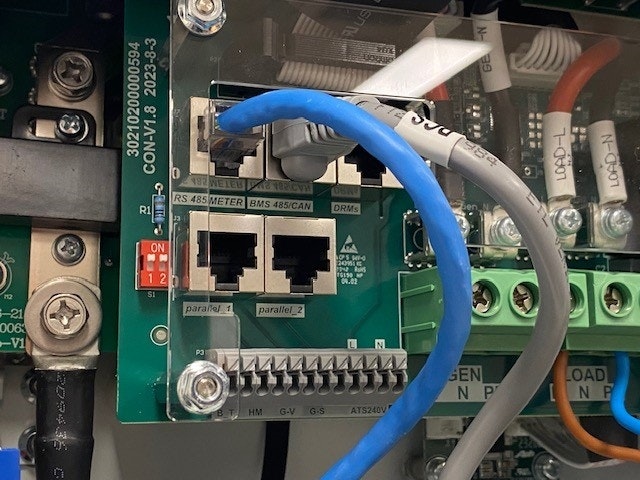

RS485

RS485 Wiring
  • For correct RS485 wiring: Follow the guidelines for RS485 wiring.
  • If the wiring shown in the table below is incorrect, please let us know.
  • There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.

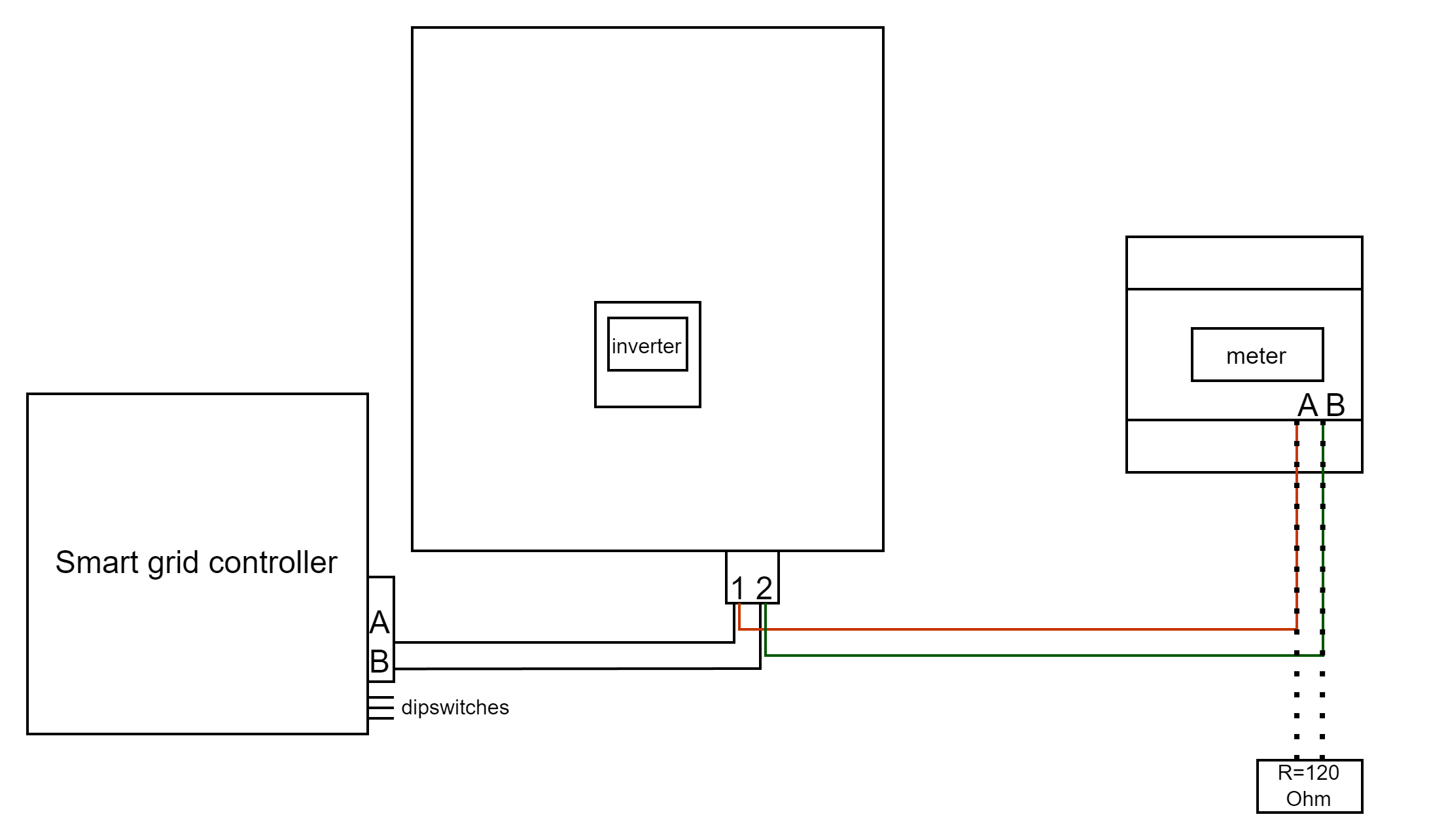

DeviceSmartgridOne Controller model OM1SmartgridOne Controller model IG8RS485-USB converterRS485-Ethernet converter
Pin 1 / Modbus-485_B RS485 ARS485_POSRS485 ATX+
Pin 2 / Modbus-485_A RS485 BRS485_NEGRS485 BTX-
Pin 3 / GND_485 RS GNDGNDNot availableG
Image 1
Image 1
Image 1

Configurazione

NOTE: RS485 Device Addresses
  • You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
  • Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
  • For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.

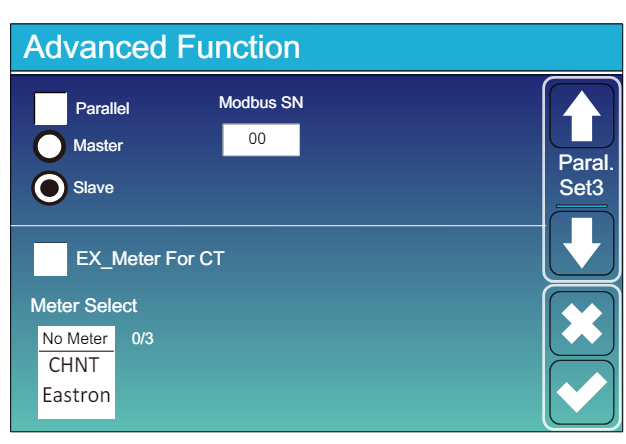

Vai a “Schermata principale” >> “Impostazioni di sistema” >> “Funzione avanzata.”

  • Il Modbus SN deve essere impostato su un numero compreso tra 1 e 247. Non selezionare 0!! Nota che se ci sono più dispositivi sul bus RS485, ognuno dovrebbe avere un numero unico. Questo è l'indirizzo.
  • Lo slave deve essere selezionato.
  • Solo quando un ulteriore misuratore è connesso direttamente all'inverter, deve essere selezionato “EX_meter For CT”. Se c'è solo un misuratore in parallelo con il SmartgridOne Controller, deve essere deselezionato.
  • Assicurati che le seguenti impostazioni siano tutte corrette: "Max A Charge", "Max A Discharge", "Grid Charge Ampere"
Image 1
