Inverter Ibridi C&I KSTAR

Dispositivi Supportati​

Device TypeVariantsModbus TCP (Ethernet)RS485CurtailmentMinimum device firmware version
Inverter Ibrido BluePulseKAC50DP-BC100DE✅✅✅V000B060D000
KAC50DP-BC107DE / KAC50DP-BC107DE2
KAC50DP-BC197DE / KAC50DP-BC197DE2

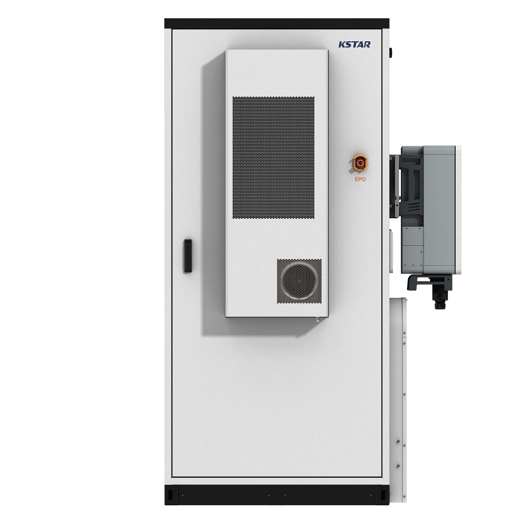

cabinet della batteria BC100DE

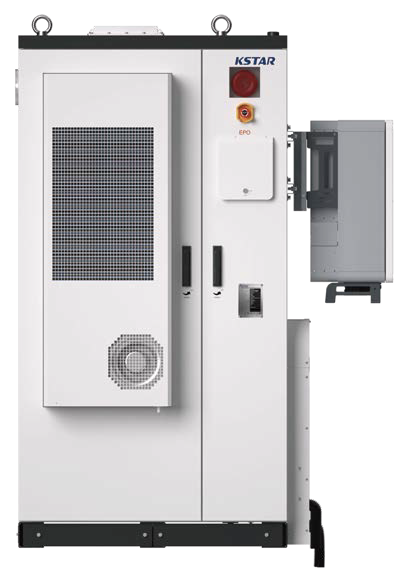

cabinet della batteria BC70DE2/BC89DE2/BC107DE2

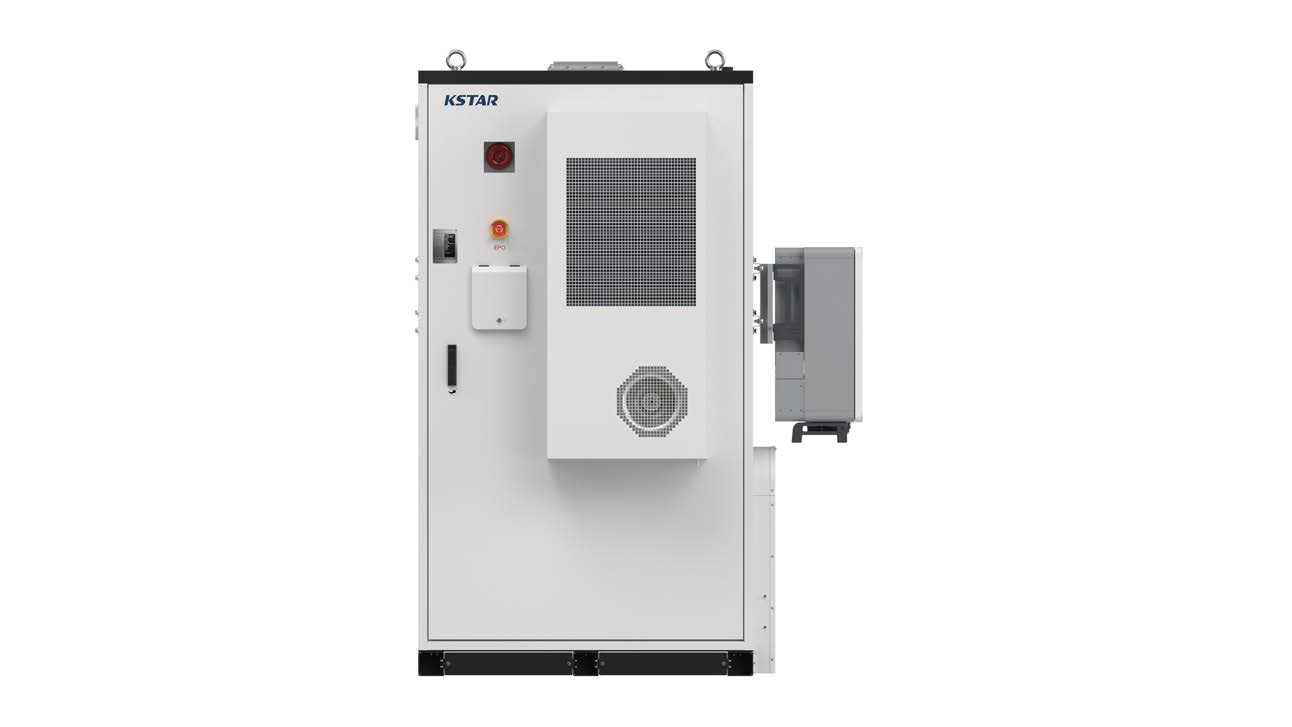

cabinet della batteria BC197DE2/BC215DE2/BC233DE2

Cablaggio​

Il SmartgridOne Controller e gli inverter KSTAR comunicano tramite Ethernet o RS485.

Ethernet​

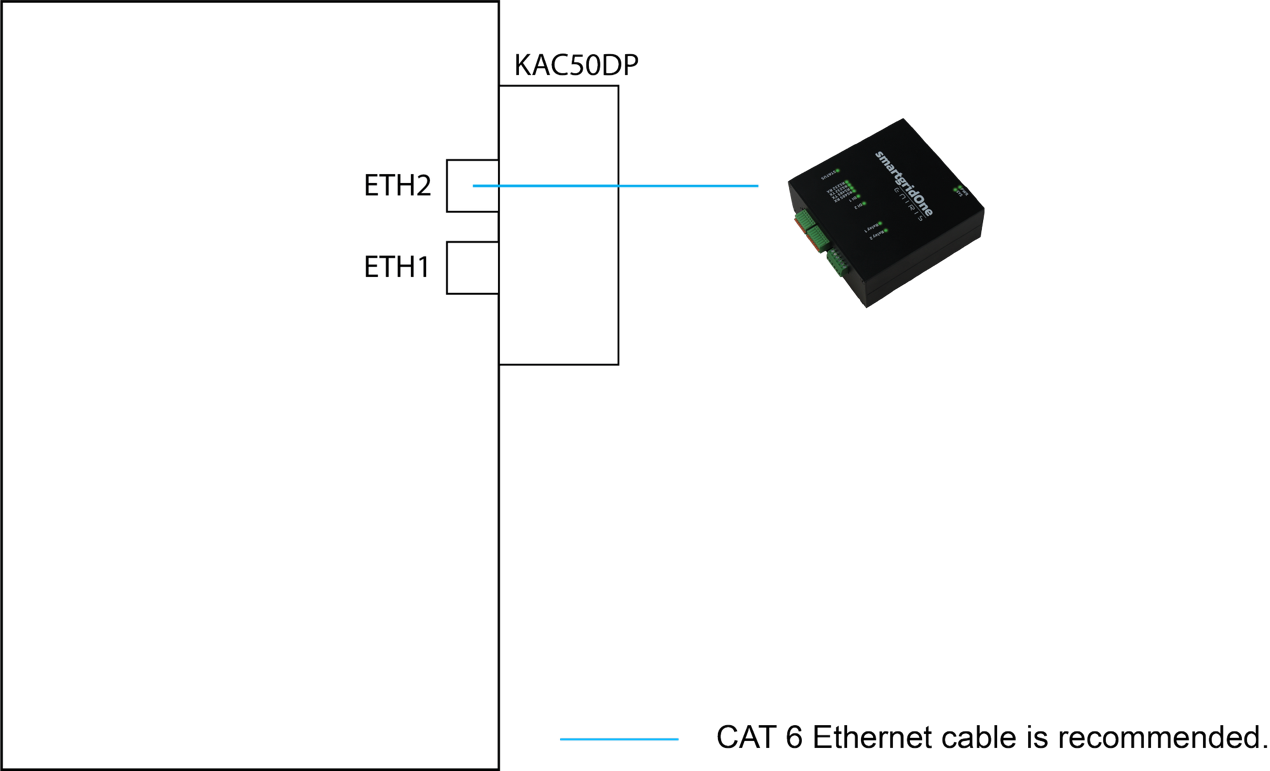

diagramma di connessione TCP

Per un cablaggio Ethernet corretto: Segui le linee guida per il cablaggio Ethernet.

RS485​

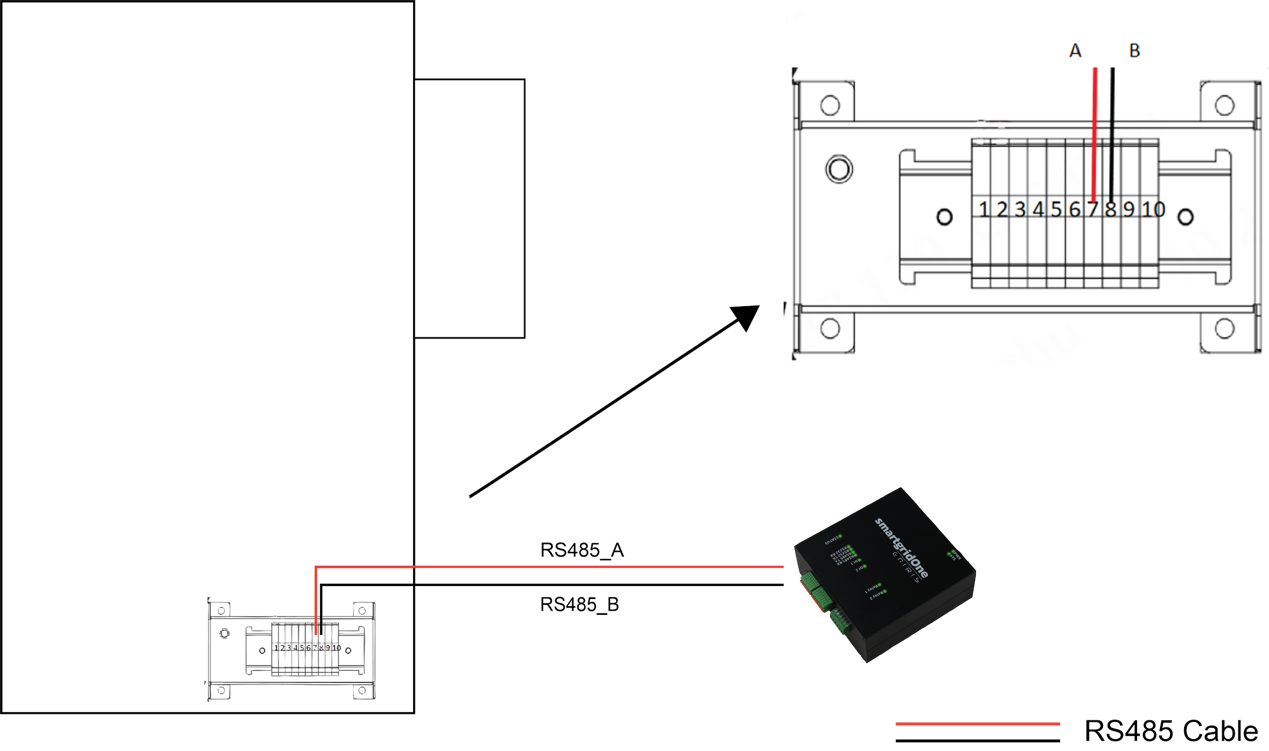

diagramma di connessione RS485

Configurazione​

NOTE: RS485 Device Addresses
  • You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
  • Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
  • For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.
